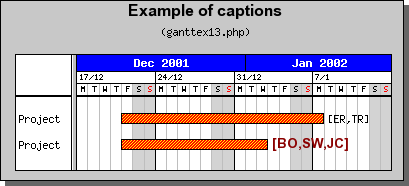

Figure 157: Illustration of the use of captions [src]
Caption for bars are placed at the far right side of the bars. They can for example be used to indicate the resources assigned to a task, the duration of the task or the progress of the activity.
Caption text for a bar is specified either when creating a bar or later by accessing the 'caption' property of bars. So the two lines
$activity = new GanttBar
(0,"Activity 1",
"2001-11-21",
"2001-12-20",
"[BS,ER]")
and
$activity->
caption->Set("[BS,ER]"
);are both ways of specifying the caption "[BS,ER]" for the activity. Since activity is a standard JpGraph text object you can easily modify font, color and size with calls to SetFont() and SetColor(), (e.g.
$activity->caption
->SetFont(FF_ARIAL,
FF_BOLD,9);The figure below illustrates the use of caption
