8.1 Line plots

The first example draws a line graph consisting of 10 Y-values. In this first example we show the full code. In the following examples we will only show interesting piece of the code.

(File: example0.php)

 <?php

include (
"../jpgraph.php");

include ("../jpgraph_line.php");



// Some data

$ydata
= array(11,3,
8,12,5
,1,9,
13,5,7
);




// Create the graph. These two calls are always required

$graph
= new Graph(350,
250,"auto");

$graph->SetScale(
"textlin");



// Create the linear plot

$lineplot
=new LinePlot($ydata);

$lineplot
->SetColor("blue");



// Add the plot to the graph

$graph->Add(
$lineplot);



// Display the graph

$graph->Stroke();

?>

Figure 3: A simple line graph [src]

You might note a few things

Both the X and Y axis have been automatically scaled. We will later on show how you might control the auto scaling how it determines the number of ticks which is displayed.
By default the Y-grid is displayed in a "soft" color
By default the image is bordered and the margins are slightly gray.
By default the 0 label on the Y-axis is not displayed

This is a perfect fine graph but looks a little bit "sparse". To make it more interesting we might want to add a few things like

A title for the graph
Title for the axis
Increase the margins to account for the title of the axis

From looking at the previous example you can see that you access all properties of JpGraph through the objects you create. Graph(), LinePlot() and so on. In general all objects you can see in the graph is accessed through a named instance.

For example the title of the graph is accessed through the 'Graph::title' property. So to specify a title string you make a call to the 'Set()' method on the title property as in:


 $graph->title->Set
('Example 2');

So by adding just a few more lines to the previous code we get a graph as shown below.

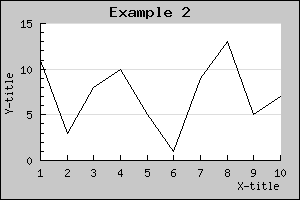

Figure 4: Same basic graph as in previous figure but with a titles for graph and axis. [src]

To achieve this we just needed to add a few more lines. (We only show the part of example 1 we changed, to look at the full source just click the [src] link in the caption. )



// Setup margin and titles

$graph->img->
SetMargin(40,20
,20,40);

$graph->title->
Set(
"Example 2");

$graph->xaxis->
title->Set("X-title"
);

$graph->yaxis->
title->Set("Y-title"
);

Again there are a couple of things you should note here

A default font and size is used for the text
The default position for the title of the graph is to be centered at the top
The default position for the title of the x-axis is the far right and for the y-axis centered and rotated in a 900 angle.

A nice change would now be to have all the titles in a bold font and the line plot a little bit thicker and in blue color. Let's do that by adding the lines

  $graph->
title->SetFont(FF_FONT1
,FS_BOLD);

$graph->yaxis->
title->SetFont(FF_FONT1
,FS_BOLD);

$graph->xaxis->
title->SetFont(FF_FONT1
,FS_BOLD);

$lineplot
->SetColor("blue");

$lineplot
->SetWeight(2);
// Two pixel wide

Again please note the consistent interface. To change font you just have to invoke the SetFont() method on the appropriate object. This principle is true for most methods you will learn. The methods may be applied to a variety of objects in JpGraph. So for example it might not come as a big surprise that to have the Y-axis in red you have to say:


 $graph->yaxis->SetColor
("red")

or perhaps we also want to make the Y-axis a bit wider by

  $graph
->yaxis->SetWidth(
2)

As a final touch let's add a frame and a drop shadow around the image since this is by default turned off. This is done with

  $graph
->SetShadow()

The result of all these modifications are shown below.

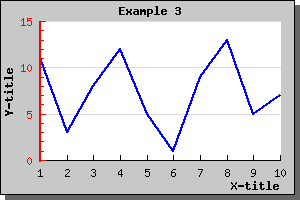

Figure 5: Making the image a little bit more interesting by adding som colors and changing the fonts [src]
