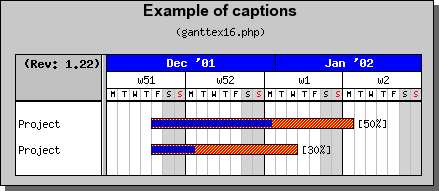

Figure 162: Adding a table title. [src]
The (default) white area in the top left of the gantt table may have a title. This is accessed by the 'tableTitle' property of the gantt scale. Using this is straightforward as the following lines show.
$graph
->scale->tableTitle->
Set(
"(Rev: 1.22)");
$graph->scale->
tableTitle->
SetFont(
FF_FONT1,
FS_BOLD);
$graph->scale->
SetTableTitleBackground(
"silver");
$graph->scale->
tableTitle->
Show();
The example lines above also changes the default white background to silver. Adding these lines to the previous example gives the following result:
From the above example you might notice that the width of the left column (which holds all the titles) have automatically adjusted itself to make the table title fit.
